Stainless Steel Exterior Aluminum Composite Panel For Building Decoration

Product Categories

ZhengZhou FS New Material Co.,Ltd

Contact Now

Stainless Steel Exterior Aluminum Composite Panel For Building Decoration

Brand Name : FS

Model Number : FS-5075

Certification : SGS,CE

Place of Origin : China

MOQ : MOQ: 100PCS

Price : 279USD/m3

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000ton/month

Delivery Time : 15 working days

Packaging Details : tray

Color : colorful

Size : 200*200MM

Feature : fire safety

Application : decoration

Packing : carton

Material : Aluminum

Contact Now

Stainless Steel Exterior Aluminum Composite Panel For Building Decoration

Introduction

PVDF Aluminium composite panel is consisted of 3 layers, the surface and back covers of high strength aluminum alloy sheets and the core of nontoxic low density polyethylene (PE) sheet. The painting in the surface and back aluminum sheets are from PPG.VALSPAR of USA and Becker of Sweden.

Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality PVDF aluminum composite panels. Our PVDF aluminum composite panels passed GB/T1778-1999 ,SGS tests and gained CE certificate.Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.

Stainless Steel Exterior Aluminum Composite Panel For Building Decoration

Application

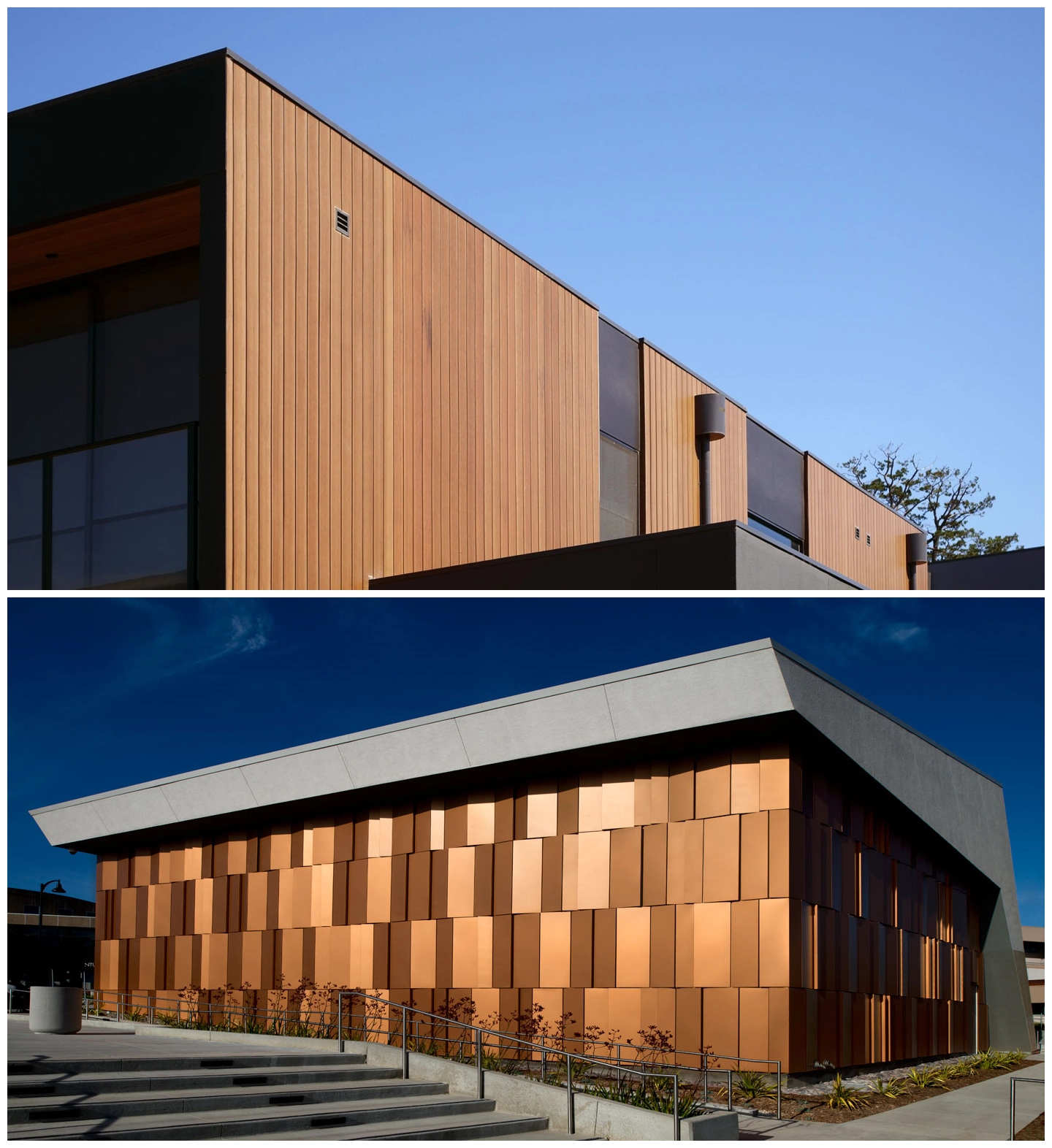

1. Constructional exterior curtain walls;

2.Decorative renovation for storey-added old buildings;

3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

4.Advertisement board, display platforms and signboards;

5. Wallboard and ceilings for tunnels;

6. Raw materials in industrial purpose;

7. Materials used for vehicle and boat.

Performance

- Light weight, high strength, extreme rigidity, superior impact resistance,

- excellent surface flatness and smoothness ,

- heat insulation, sound insulation, fire-resistance,

- acid-resistance, alkali-resistance, good weatherproofing and non-resonance

- various uniform colors ,can be easily processed and fabricated, quickly installed,

- elegant and magnificent, good flexibility fits various designs,

- easily maintenance, simply cleaning

Specification

Panel Thickness(mm)	1.5mm-8mm
Aluminium Skin Thickness(mm)	0.08mm-0.5mm
Width(mm)	1000mm,1220mm,1250mm,1500mm,2000mm(Max)
Length(mm)	1000mm-8000mm
Surface Coating	PE,PVDF,NANO,Mirror,Brush,Wodden,Marble
Painting Thickness	16Mic-18Mic(PE),25Mic-28Mic(PVDF)

Dimensional Tolerances

Panel Width	+/-2mm
Panel Length	+/-3mm
Panel Thickness	+/-0.2mm
Panel Diagonal	<5mm
Aluminium Skin Thickness	+/-0.02mm
Color Diffrence	E<2.0
